MMC - Mini Motor Controller for Pick/Place feeder
We had some periodic faults on our feeders on our old APS Novastar LS60 Pick / Place machine. Sometimes they feeded the components wrong so the vacuum nozzle did not get a proper grip on the component. Therefore, we made a new controller and updated all the feeders. On the original PCB you had to set the feeder pitch on a dipswitch, but on our new controller you can just hold the button in and in that way learn the feeder pitch. After this update, the feeders never failed again. Today we no longer have the machine. We have since upgraded to a better and faster machine.
MMC - Mini Motor Controller for DC motors
The original feeder controller
The new controller installed in the feeder

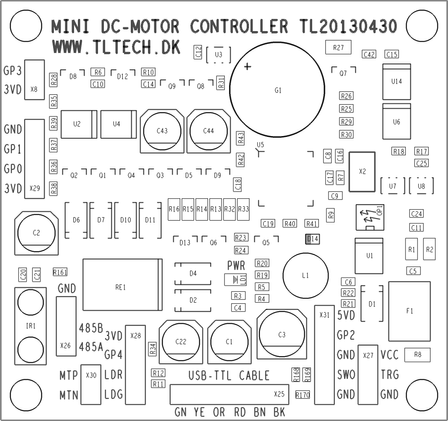

MMC - Mini Motor Controller PCB component placement

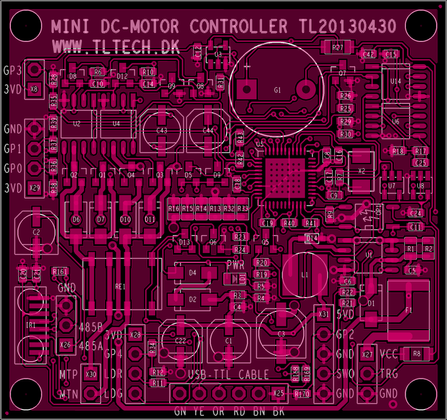

MMC - Mini Motor Controller PCB top cobber layer

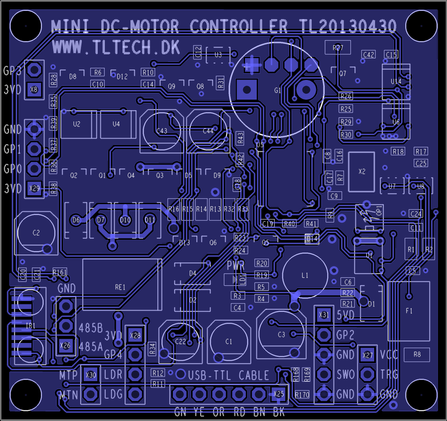

MMC - Mini Motor Controller PCB bottom cobber layer
Here's a demo video
